Ready-to-use
VESTAKEEP® PEEK - Implant grade filaments
Evonik has become the first company in the world to develop a polymer filament based on PEEK (polyether ether ketone) in implant-grade quality for use as a 3D printing material for implants.

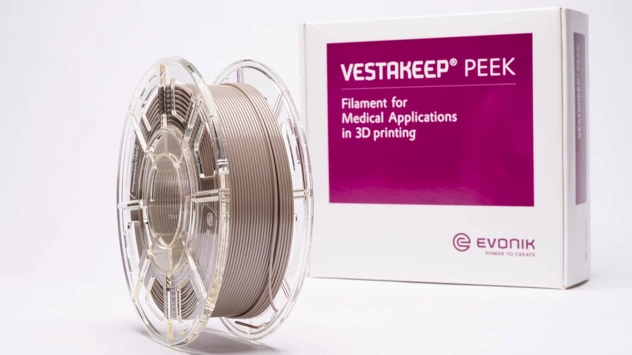

![VESTAKEEP® i4 3DF / VESTAKEEP® iC4800 3DF](https://www.infinam.com/en/3d-printing-materials/plastic-filaments/implant-peek/media/371901-desktop.jpg?rev=f7f329892d5213448894003edd96d7fa)

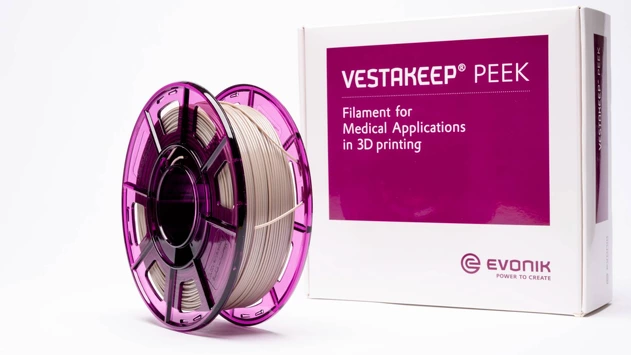

![VESTAKEEP® i4 3DF-T](https://www.infinam.com/en/3d-printing-materials/plastic-filaments/implant-peek/media/371902-desktop.jpg?rev=bf5520b2d4b737f9ce5c480d2717b7c8)

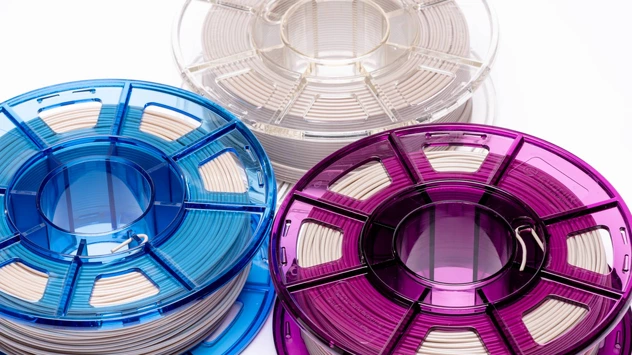

![VESTAKEEP® PEEK filaments for medical 3D applications](https://www.infinam.com/en/3d-printing-materials/plastic-filaments/implant-peek/media/371910-desktop.jpg?rev=5b5e22322157712b7ea5a7bcd9ca41fa)
This high-performance material can be used in fused filament fabrication (FFF) technology and is expected to enable additive production of three-dimensional plastic parts for medical implants in the human body.
Product overview
Product name |
Description |
Diameter |
Packaging |
Download |
VESTAKEEP® iC4612 3DF |
Implant 3D printing grade with 12% carbon-fiber content |
1.75 mm |
Transparent spools with 500g or 1,000g |
|
VESTAKEEP® iC4620 3DF |
Implant 3D printing grade with 20% carbon-fiber content |
1.75 mm |
Transparent spools with 500g or 1,000g |
|
VESTAKEEP® iC4800 3DF |
Implant 3D printing grade with osteoconductive properites |
1.75 mm |
Transparent spools with 250g or 500g |
|
VESTAKEEP® i4 3DF |
Implant 3D printing grade |
1.75 mm |
Transparent spools with 250g or 500g |
|
VESTAKEEP® i4 3DF-T |
Test and development grade |
1.75 mm |
Deep purple spools with 250g or 500g |
Testing and Development grade enables cost-effective process adaptation
Evonik provides what is known as a “testing grade” version of its PEEK filament for fused filament fabrication (FFF) technology. The testing-grade material has the exact same processing and mechanical product properties as the implant-grade material—but without the documentation needed for approval in medical device applications. This offers a cost-effective way of adapting the processing characteristics of the high-performance plastic for printing processes.
![](https://www.infinam.com/en/3d-printing-materials/plastic-filaments/implant-peek/media/493724-desktop.jpg?rev=3bee50e5ded6dc76c7f2fc88bc0fb184)
No other market showcases the benefits of additive manufacturing as evident as in today’s medical technology. Evonik and KUMOVIS, a 3D Systems company, explore the possibilities of 3D printing in medical technology for enhanced patient recovery.
Medical 3D printing grade
VESTAKEEP®i4 3DF is perfectly suitable for additive manufacturing using fused filament fabrication (FFF) technology. This PEEK filament is an implant-grade material based on VESTAKEEP® i4 G, a highly viscous, high-performance polymer from Evonik impressing by its
- biocompatibility
- biostability
- x-ray transparency, and
- easy handling.
The filament is manufactured in a clean and controlled environment and undergoes strict quality management for medical materials to meet the requirements of ASTM F2026 (the standard specification for PEEK polymers for surgical implant applications).

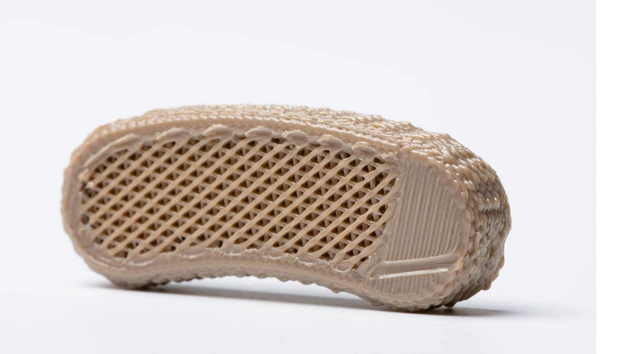

![3D printed spinal cage implant based on VESTAKEEP® iC4800 3DF implante grade PEEK filament](https://www.infinam.com/en/3d-printing-materials/plastic-filaments/implant-peek/media/408101-desktop.jpg?rev=67f870426af25698e5fe111ac57894e9)

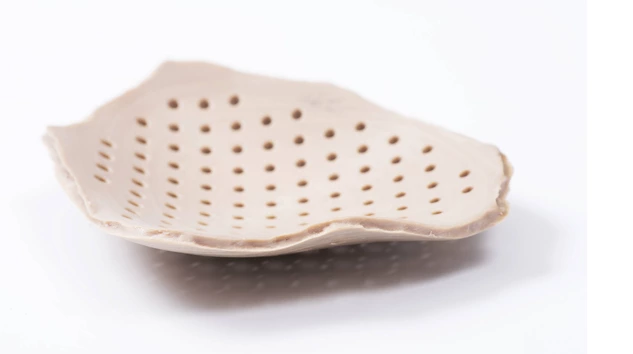

![3D printed cranial-maxillo-facial implant based on VESTAKEEP® i4 3DF implante grade PEEK filament](https://www.infinam.com/en/3d-printing-materials/plastic-filaments/implant-peek/media/210924-desktop.jpg?rev=7b84d578c4a5e2a4aab259e9a8ba350b)

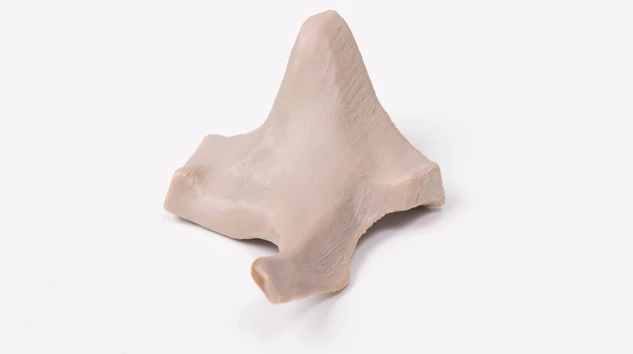

![3D printed cheekbone implant based on VESTAKEEP® i4 3DF implante grade PEEK filamen](https://www.infinam.com/en/3d-printing-materials/plastic-filaments/implant-peek/media/211729-desktop.jpg?rev=5686165e49a91cfcd4a64b73b47f1368)
![](https://www.infinam.com/en/media/use-cases/media/671985-desktop.jpg?rev=8e7bbef403504ff34f93bff1e8ea55ec)
PEEK Filament for 3D printed implants at point of care
How Evonik’s VESTAKEEP® PEEK filament enables individual treatment of patients at point of care. ... MORE
